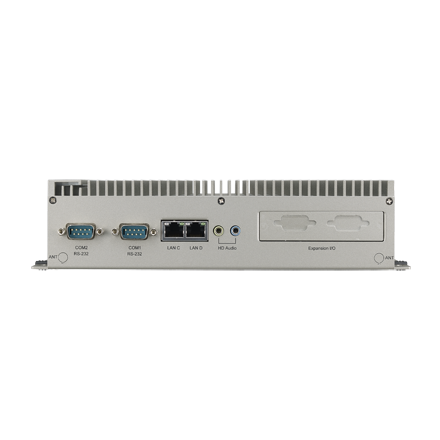

UNO-2483G
Intel? Core? i7/i3/Celeron Regular-Size Automation Computer w/ 4 x GbE, 2 x mPCIe, HDMI/VGA
Main Features
  • 4th Generation Intel® Core™ i7/i3/Celeron Processors up to 1.9GHz with 4GB/8GB DDR3L Memory
  • 4 x GbE, 4 x USB 2.0/3.0, 2 x RS-232, 2 x RS-422/485, 1 x VGA, 1 x HDMI, Audio
  • Comprehensive Palm, Small, Regular-size form-factor
  • Compact with Fanless Design
  • Rubber Stopper Design with Captive Screw
  • Dual HDD/SSD support with RAID 0/1 in regular-size
  • Diverse system IO and Isolated Digital IO by iDoor Technology
  • Supports Fieldbus Protocol by iDoor Technology
  • 3G/GPS/GPRS/WiFi Communication by iDoor Technology
  • Supports MRAM by iDoor Technology
  • Chassis Grounding Protection
  • LAN Redundancy (Teaming)
  • Fault-Protected RS-485 Transceivers With Extended Common-Mode Range
     數據表(PDF)    技術資料下載
  規格表
　 UNO-2483G-434AE UNO-2483G-474AE UNO-2483G-4C3AE
Environment Ingress Protection IP40 IP40 IP40
Vibration Protection Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
Operating Temperature -20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow -20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow -20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow
Relative Humidity 10 ~ 95% @ 40° C (non-condensing) 10 ~ 95% @ 40° C (non-condensing) 10 ~ 95% @ 40° C (non-condensing)
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11ms Operating, IEC 60068-2-27, 50G, half sine, 11ms Operating, IEC 60068-2-27, 50G, half sine, 11ms
Storage Temperature - 40 ~ 85°C ( -40 ~ 185°F) - 40 ~ 85°C ( -40 ~ 185°F) - 40 ~ 85°C ( -40 ~ 185°F)
I/O Interface Audio Line-In, Line-Out Line-In, Line-Out Line-In, Line-Out
Displays 1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp 1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp 1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp
Grounding Protection Chassis Grounding Chassis Grounding Chassis Grounding
LAN 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
Power Connector 1 x 3 Pins, Terminal Block 1 x 3 Pins, Terminal Block 1 x 3 Pins, Terminal Block
Serial Ports 2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps 2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps 2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps
USB Port 4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant) 4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant) 4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)
System Hardware Expansion 2 x Full-size mPCIe slot, mPCIe 2.0 2 x Full-size mPCIe slot, mPCIe 2.0 2 x Full-size mPCIe slot, mPCIe 2.0
LED Indicators LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD
Storage One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional) One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional) One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional)
Graphics Engine Intel® HD Graphics 5000/4400 Intel® HD Graphics 5000/4400 Intel® HD Graphics 5000/4400
Memory On-board 8GB DDR3L 1333/1600 MHz On-board 8GB DDR3L 1333/1600 MHz On-board 4GB DDR3L 1333/1600 MHz
Processor Intel® 4th Gen Core™ i3-4010U ULT 1.7 GHz Dual Core, 3MB L2 Intel® Core™ i7-4650U ULT 1.7GHz Haswell Dual Core, 4MB L2 Intel® 4th Gen Celeron® 2980U ULT 1.6 GHz Dual Core, 2MB L2
General Mounting Stand, Wall, VESA (Optional) Stand, Wall, VESA (Optional) Stand, Wall, VESA (Optional)
System Hardware System Chip Integrated Intel 8 Series Chipset Integrated Intel 8 Series Chipset Integrated Intel 8 Series Chipset
General OS Support Microsoft® Windows 7/8 Microsoft® Windows 7/8 Microsoft® Windows 7/8
Power Consumption 28W (Typical), 72W(Max) 28W (Typical), 72W(Max) 28W (Typical), 72W(Max)
Power Requirement 24VDC ± 20% 24VDC ± 20% 24VDC ± 20%
Weight (Net) 1.6kg (3.5lbs) 1.6kg (3.5lbs) 1.6kg (3.5lbs)
System Hardware BIOS AMI UEFI 128Mbit Flash BIOS AMI UEFI 128Mbit Flash BIOS AMI UEFI 128Mbit Flash BIOS
Watchdog Timer Programmable 256 levels timer interval, from 1 to 255 sec Programmable 256 levels timer interval, from 1 to 255 sec Programmable 256 levels timer interval, from 1 to 255 sec
General Certifications CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI
Dimensions (W x H x D) 252 x 149 x 62 mm (9.9" x 5.9" x 2.4") 252 x 149 x 62 mm (9.9" x 5.9" x 2.4") 252 x 149 x 62 mm (9.9" x 5.9" x 2.4")
Enclosure Aluminum Housing Aluminum Housing Aluminum Housing
Form factor Regular Size Regular Size Regular Size
