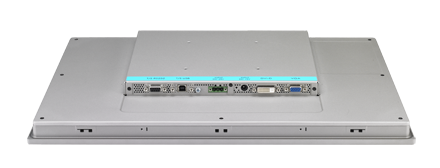

18.5寸寬屏：FPM-7181W
18.5" Industrial Monitor with Projected Capacitive Touchscreen, Direct-VGA and DVI Ports
Main Features
  • 18.5” WXGA TFT LED LCD wide screen display
  • Truly-flat touch screen with IP66 compliance
  • Slim type design for Panel mount / Wall mount easy installation
  • Supports industrial 24VDC power input
  • Supports panel, wall, desktop and VESA arm mounting
  • OSD control pad on rear panel
  • Projected Capacitive Touchscreen, with Multi touch.
  • Robust design with SECC chassis and Magnesium alloy front panel
  • Lockable I/O connectors
     數據表(PDF)    技術資料下載
  規格表
FPM-7181W-P3AE
Display Display Size 18.5"
Display Type WXGA TFT LED LCD
Max. Colors 16.2 M
Max. Resolution 1366 x 768
Backlight MTBF(hrs) 50,000
Luminance (cd/m2) 300
Viewing Angle (H/V°) 170/160
Contrast Ratio 1000:01:00
General Power Consumption 35 W + 20%
Dimensions 488 x 309 x 47.7 mm (19.21" x 12.17" x 1.88")
Power Input Voltage Phoenix Jack: 24 VDC input
DC Power Input(voltage) External 57 W powern adapter, with 100 ~ 240 VAC input and 12 VDC @ 4.75 A output
Video Port VGA & DVI-D
Weight (Net) 6kg
Operating System Windows XP, Vista, 7, 8, XPe and Linux
OSD(onscreen display) in rear cover
Certifications BSMI, CCC, CE, FCC Class A, UL
Mounting Rear cover: SECC
Environment Operating Temperature 0 ~ 55°C (32 ~ 131°F)
Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
Waterproof Front panel is IP66 compliant
Touchscreen (Optional) Touchscreen Projected Capacitive Touch
