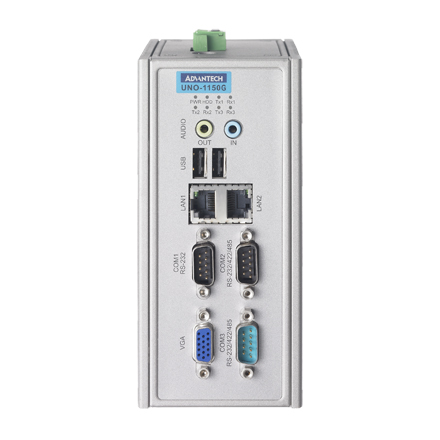

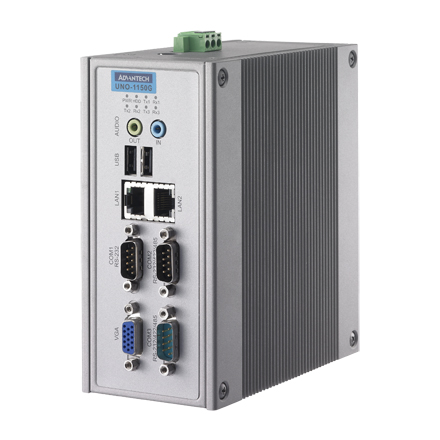

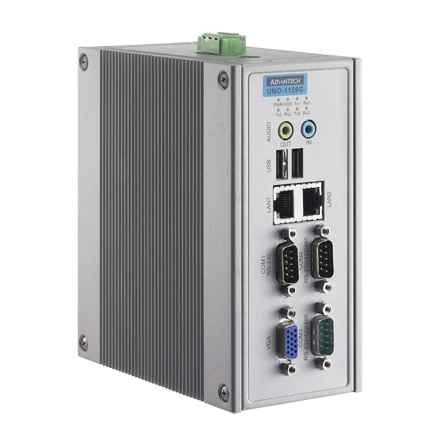

UNO-1150G

AMD Geode ? LX800 DIN-rail PCswith 2 x LAN, 3 x COM

Main Features

Onboard AMD Geode LX800 500 MHz processor
Two RS-232 (one pin header reserved) and two RS-232/422/485 ports with automatic flow control
Two 10/100 Base-T RJ-45 ports
Two USB, audio and internal CompactFlash®
Compact size, small foot print, saves space and front accessible for easy wiring
DIN-rail design for easy installation in field cabinet
Wide operating temperature range
Windows® CE 6.0, Windows XP Embedded, and Linux ready solution
Onboard system & I/O LED indicators
Fanless desing with no intemal cabling
Isolation between chassis and power ground

規(guī)格表

UNO-1150G-G30E
General	Power Consumption	15 W (Typical)
	Mounting	DIN-rail, Wallmount
	Certifications	CE, FCC class A, UL, CCC
	Weight	1.6 kg
	Dimensions	71 x 155 x 140 mm (2.8" x 6.1" x 5.6")
	Enclosure Housing	Aluminum + SECC
	OS Support	WES Windows XP Embedded, Windows 2000 & XP, Windows CE 5.0/6.0, Linux
	Power Requirement	9 ~ 36 VDC (e.g +24 V @ 1 A) (Min. 24 W), AT
	System Design	Fanless with no internal cabling
	Remote Management	Built-in Advantech DiagAnywhere agent on Windows CE/XPe
System Hardware	CPU	AMD Geode LX 800 (500MHz)
	Memory	Onboard 256 MB DDR SDRAM
	Storage	SSD: 1 x internal type I/II CompactFlash slot, HDD: one 2.5" SATA HDD bracket
	Keyboard/Mouse Ports	1 x PS/2
	Audio	Line in, Line out
	Display	DB15 VGA connector, supports up to 1024 x 768 @ 60 Hz
Processor System	Watchdog Timer	Programmable 256 levels timer interval, from 1 to 255 sec
System Hardware	Indicators	LEDs for Power, IDE, LAN (Active, Status) and Serial (Tx, Rx)
I/O Interface	Serial Ports	2 x RS-232, 2 x RS-232/422/485 with DB9 connectors,Automatic RS-485 data flow control
	LAN	2 x 10/100 Base-T RJ-45 ports
	USB	2 x USB, OpenHCI, Rev. 1.1 compliant
Environment	Temperature (Operating)	-10 ~ 60° C (14 ~ 140° F)
	Temperature (Storage)	-20 ~ 80° C (-4 ~ 176° F)
	Humidity (Operating)	95% @ 40° C (non-condensing)
