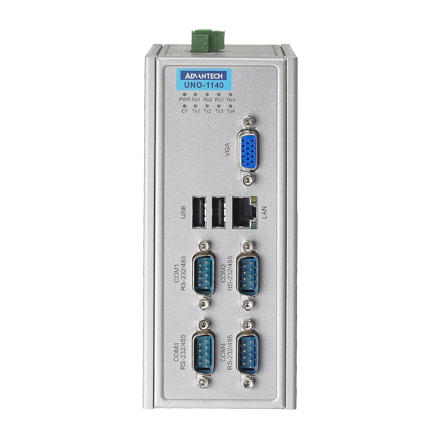

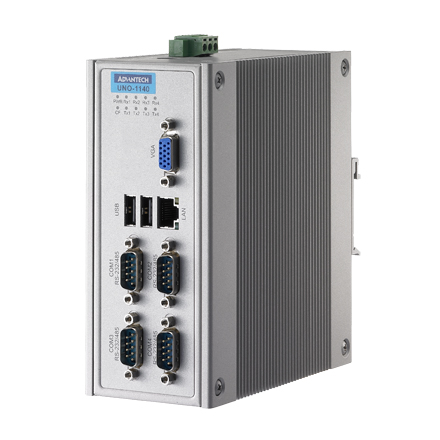

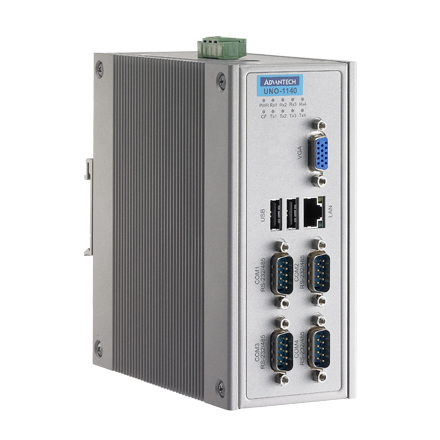

UNO-1140

486SX-grade SoC DIN-rail PCs with 1 x LAN, 4 x COM

Main Features

Onboard Advantech EVA-X4150 SoC,486SX grade, 150 MHz processor
Four RS-232/485 ports for UNO-1140
Industrial-grade serial port design without data loss
One 10/100 Base-T RJ-45 port
Two USB 2.0 ports and one internal CompactFlash®
Compact size, small footprint, saves space
Front-accessible I/O and DIN-rail design for easy installation in control cabinet
Wide operating temperature range up to 75°C
Windows® CE 5.0, DOS, and Linux ready solution
Onboard system & I/O LED indicators
Fanless design with no intemal cabling
Grounding isolation between chassis and system
IP40 ingress protection

規(guī)格表

UNO-1140-V10E
General	Power Consumption	10 W
	Mounting	DIN-rail, Wallmount
	Certifications	CE, FCC class A, UL, CCC
	Weight	1 kg
	Dimensions	71 x 155 x 140 mm (2.8" x 6.1" x 5.6")
	Enclosure Housing	Aluminum + SECC
	OS Support	DOS, Windows CE 5.0, Linux
	Power Requirement	9 ~ 36 VDC (e.g +24 V @ 1 A) (Min. 24 W), AT
	System Design	Fanless with no internal cabling
	Remote Management	Built-in Advantech DiagAnywhere agent on Windows CE/XPe
System Hardware	CPU	EVA-X4150 SoC,486SX grade, 150MHz
	Memory	Onboard 64 MB Industrial grade SDRAM
	Storage	CF: 1 x internal type I/II CompactFlash slot
	Keyboard/Mouse Ports	1 x PS/2
	Display	DB15 VGA connector, supports up to 1024 x 768 @ 60 Hz
Processor System	Watchdog Timer	Programmable 256 levels timer interval, from 1 to 255 sec
System Hardware	Indicators	LEDs for Power, IDE, LAN (Active, Status) and Serial (Tx, Rx)
I/O Interface	Serial Ports	4 x RS-232/485 with D89 connectors,Automatic RS-485 data flow control
	LAN	1 x 10/100 Base-T RJ-45 ports
	USB	2 x USB, USB 2.0 compliant
Environment	Temperature (Operating)	- 20 ~ 75° C (-4 ~ 168° F)
	Temperature (Storage)	-20 ~ 80° C (-4 ~ 176° F)
	Humidity (Operating)	21 ~ 95%(non-condensing
