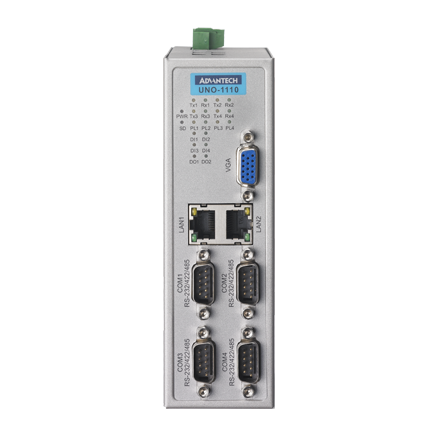

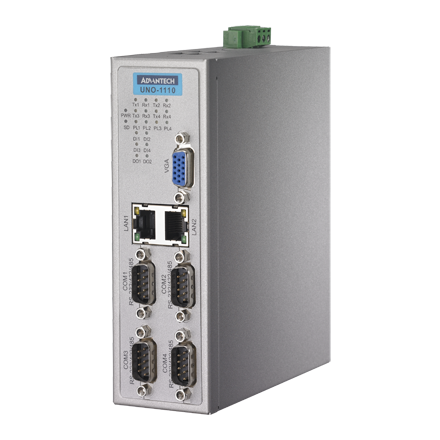

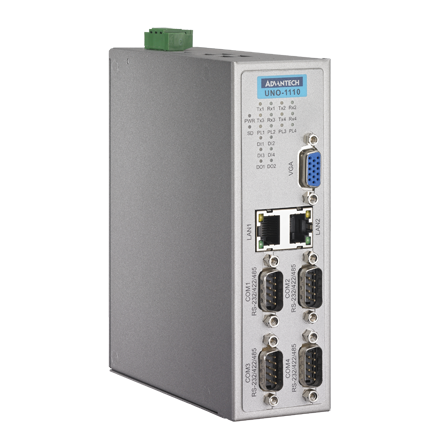

UNO-1110
TI Cortex AM3505 DIN-rail PC with 2 x LAN, 5 x COM, 4 x USB

Main Features

  • TI Cortex A8 AM3505 600 MHz processor
  • 256 MB DDR2 on board
  • 4 x RS-232/422/485, 1 x RS-485 serial ports
  • Dual 10/100 Mbps Ethernet2 x SD card slots
  • 2 x SD card slots
  • Windows® CE 6.0 Ready Platform and optional uClinux OS support
  • Included Advantech DaigAnywhere for easy remote configuration & diagnosis
  • DIN-rail and Wallmounting Options
  • Onboard system & LED indicators
  • Supports Microsoft .NET compact framework 3.5
  • Fanless and no internal cabling design
  • System/Field ground isolation
      數據表(PDF)     技術資料下載

  規格表
UNO-1110-R11AE
Environment Ingress Protection IP40
Operating Humidity 20 ~ 95% (non-condensing)
Operating Temperature -10 ~ 70°C (14 ~ 158°F)
Shock Protection Half-sine wave, 30G, 11ms
Storage Humidity 20 ~ 95% (non-condensing)
Storage Temperature -40 ~ 80°C (-4 ~ 176°F)
Vibration Protection Random 1Grms
General Certifications CE, FCC class A, UL, CCC
Dimensions (W x H x D) 50 x 154 x 127 mm (1.9" x 6.1" x 5")
Enclosure Aluminium with solid mounting hardware
Industrial Grounding Isolation between chassis and power ground
Mounting DIN-rail, Wallmount
Power Consumption 10 ~ 30 VDC (13 W), AT, ground isolation, dual power
System Design Fanless design with no internal cabling
Weight 0.45 kg
System Hardware CPU TI Cortex A8 AM3505 600 MHz
Display DB15 VGA connector, up to 1024 x 768
Indicators Power, Serial (Tx, Rx), SD, 4 x DI/2 x DO, 4 x programmable LED
Memory Onboard 256 MB DDR2
Expansion 1 x Mini PCIe card slot (Signal Protocol: USB Differential)
Other Realtime clock, Watchdog timer
SIM 1 x card slot (reserved for project and will only have 1 x
Storage 2 x SD card slots (one for boot and another for data
System Software Operating System WinCE 6.0/ Linux
Remote Management Built-in Advantech DiagAnywhere agent on Windows
